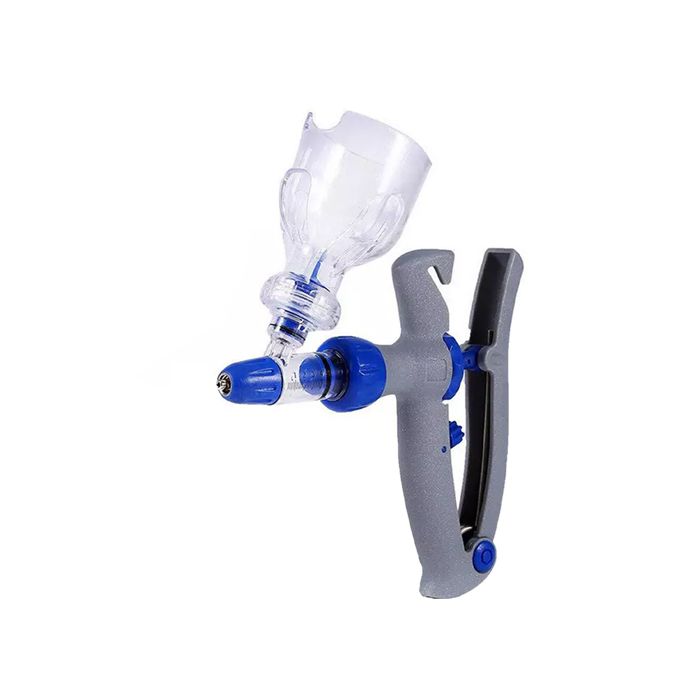

Vaccinator PRIMA MIN with a bottle of 2 ml

DESCRIPTION

Vaccinator PRIMA MIN with a vial - intended for mass vaccination of animals. The ideal syringes for PrimAMIN vaccinators are available in two types: with a vial holder and with a tube. Capacity 2ml. Dosing is provided with a PrimAMIN syringe with a capacity of 2 ml: from 0.5 to 2 ml.

MODE OF APPLICATION

Before use, the syringe must be disassembled and cleaned of contamination. Sterilization of a syringe is possible by boiling, or you can use disinfectant treatment to disinfect instruments in veterinary medicine. To do this, before sterilizing the syringe, it is recommended to completely disconnect all tubes (turn the lock nut No. 10 and remove the tube and valve). Attention: sterilization with hot steam is prohibited !!!

Syringe assembly: make sure all parts are connected correctly. Tighten locknut # 10 securely. Check that each joint is securely seated and the sealed part is airtight.

How to connect the injection needle: Take the Luer-Locke needle, put it on the syringe and turn it clockwise until it stops on the connector No. 2.

Dosing adjustment: turn the adjusting screw on the piston rod until the required dosing amount is achieved. The dose of drug administration is set according to the risks and numbers of the scale on the syringe barrel, by aligning with the end part of the piston of the syringe-vaccinator

Place the tube with the needle on the hose attachment, lower the needle into the bottle with the veterinary drug and pump the liquid into the syringe with a pen, make sure that the air is completely out of the tube and syringe before injection.

CHARACTERISTIC

Dosage, maximum up to 2 or 5 ml.

Accuracy no more than В± 3%.

Injection dosage adjustment: 0.5-1ml.

PACKAGING

Available in 1pc.

Specifications

Bonus points

0

KolVUP

1

Manufacturer

Vetspectrum

Teaser

for mass vaccination of animals
