Ultraviolet irradiator OUFV-02 SUN

Ultraviolet irradiator OUFv-02 Solnyshko" (quartz lamp) is intended for local (local) and intracavitary irradiation in the effective spectral range of 240 - 320 nm for infectious, infectious-allergic, inflammatory, post-traumatic diseases and injuries in medical and medical institutions (hospitals, clinics, sanatoriums, dispensaries, etc.), as well as at home.

Irradiation with apparatus OUFv-02 "Solnyshko"

Irradiation is subdivided into intracavitary and local (local):

Intracavitary irradiation - irradiation of the mucous membranes of the nose, oral cavity, external auditory canal for inflammatory, infectious-allergic, infectious diseases.

Local (local) radiation - radiation in diseases, as well as traumatic (suppurative, infectious - inflammatory (shingles) lesions of the skin, with injuries of the musculoskeletal system.

Indications for use:

Intracavitary (local) ultraviolet radiation:

periodontitis, periodontal disease, gingivitis

chronic tonsillitis

chronic subatrophic pharyngitis, acute pharyngitis

acute rhinitis, rhinitis, vasomotor rhinitis

acute respiratory illness

acute and chronic inflammation of the outer and middle ear.

Local (local) ultraviolet irradiation of the skin:

bronchial asthma

chronic bronchitis, prolonged course

acute and chronic neuralgia and neuropathy of the peripheral nerves

deforming arthrosis, reactive arthritis, rheumatoid arthritis

traumatic injuries of the skin and the musculoskeletal system (bone fractures)

purulent wounds, trophic ulcers, bedsores, inflammatory infiltrates, furuncles, corbuncles

acute and chronic erysipelas,

shingles (hegres zosteg).

Contraindications

malignant neoplasms at any time during the course of the disease, incl.

after radical operations

systemic connective tissue diseases

active form of pulmonary tuberculosis

hyperthyroidism

feverish conditions

bleeding tendency

circulatory insufficiency of the II and III degrees

arterial hypertension of the III degree

severe atherosclerosis

myocardial infarction (first 2-3 weeks)

acute violation of cerebral circulation

diseases of the kidneys and liver with a failure of their function

peptic ulcer during an exacerbation

chronic hepatitis, pancreatitis with symptoms of process activity

cachexia

hypersensitivity to UV rays, photodermatosis.

Irradiance of OUFv-02 "Solnyshko" in the effective spectral range is:

Type of irradiation Nominal value, W / m2 At total irradiation at a distance of 0.5 m from the irradiated surface not more than 2.0 At local irradiation at the tube cut O 5 mm not less than 1.6 At local irradiation at the tube cut O 15 mm at least 2.0 At local irradiation at an oblique cut 60 ° not less than 2.2

Effective radiation range: 240-350 nm (combined spectrum)

Power consumption from the power supply network: no more than 300 VA

The time for establishing the operating mode of the product does not exceed 1 minute from the moment the UV lamp of the illuminator lights up

Operating mode: the device can work for 6 hours a day in a cyclic mode - 30 minutes work - 30 minutes break (without tubes and shutters), 15 minutes work - 30 minutes break (with tube and shutter)

Overall dimensions: no more than 260x140x130 mm

Kit weight: no more: 1 kg

Power supply from 220 V, frequency 50 Hz

Lamp type DRT-240 (NM-250).

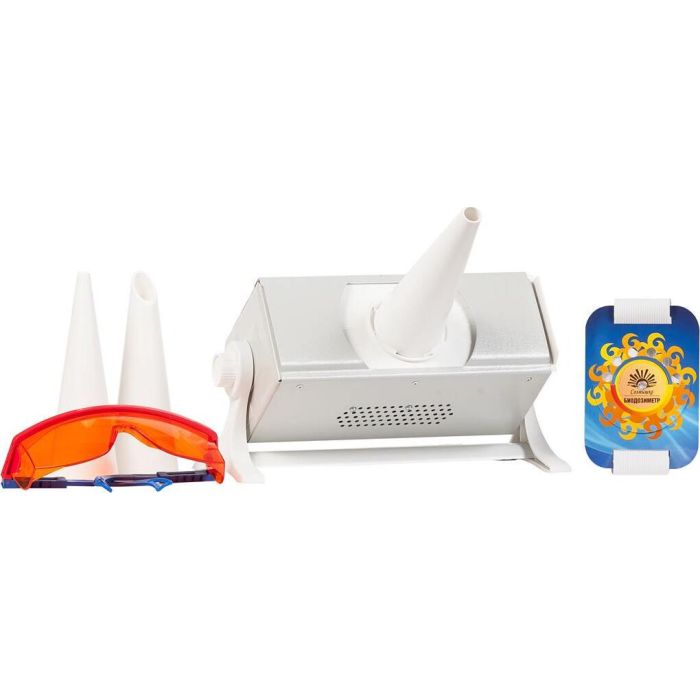

Equipment

Ultraviolet irradiator OUFv-02 "Solnyshko" - 1 pc .

UV protective goggles - 1 piece

Tube with an exit hole O 5 mm - 1 pc .

Tube with outlet Ø 15 mm - 1 pc .

A tube with an outlet at an angle of 60 ° - 1 pc .

Biodosimeter - 1 pc .

Manual

Instructions for use.

Specifications

Type of food

From 220V network

Manufacturer country

Russia

Item weight, g

1000

Colour

The black

A type

quartz lamp

Brand name

Sun

Package weight, g

1050

"
