OUFK-01 (New) Sunny Irradiator with Ultraviolet Quartz Gel #

The main

OUFk-01 device characteristics in a new design

lightweight aluminum body

new ventilation system

lamp resource 6000-8000 hours

possibility of self-replacement of the lamp

included - comfortable goggles with temples

Appointment of the OUFk-01 (NEW) Sun" irradiator

The OUFk-01 irradiator is designed for general and intracavitary local irradiation in inflammatory diseases in otorhinolaryngology in medical, therapeutic and prophylactic, sanatorium-resort institutions, as well as at home.

It can be used in the treatment of both adults and children over 3 years old.

Intracavitary UFO:

periodontitis, periodontal disease, gingivitis,

chronic tonsillitis,

chronic subatrophic pharyngitis, acute pharyngitis,

acute rhinitis, vasomotor rhinitis,

acute respiratory illness,

acute and chronic inflammation of the outer and middle ear.

Local (local) UFO of the skin is shown:

bronchial asthma,

chronic bronchitis, prolonged course,

acute and chronic neuralgia and neuropathy of the peripheral nerves

deforming arthrosis, reactive arthritis, rheumatoid arthritis,

traumatic injuries of the skin and the musculoskeletal system (bone fractures),

purulent wounds, trophic ulcers, bedsores, inflammatory infiltrates, boils, carbuncles,

acute and chronic erysipelas,

shingles (hegres, zosteg).

Contraindications

malignant neoplasms in any period of the course,

diseases, incl.

after radical operations,

systemic connective tissue diseases,

active form of pulmonary tuberculosis,

hyperthyroidism,

feverish conditions

bleeding tendency

circulatory failure II and III degrees,

arterial hypertension III degree,

pronounced atherosclerosis,

myocardial infarction (first 2-3 weeks),

acute disturbance of cerebral circulation,

diseases of the kidneys and liver with insufficient function,

peptic ulcer during exacerbation,

chronic hepatitis, pancreatitis with symptoms of process activity,

cachexia,

hypersensitivity to UV rays, photodermatosis.

Irradiance of OUFK-01 (NEW) "Solnyshko" in the effective spectral range is:

Irradiation type Nominal value, W / m2

With general irradiation at a distance of 0.7 m from the irradiated surface no more than 1.0

With local irradiation at the tube cut O 5mm

not less than 0.8

With local irradiation at the tube cut O 15mm

not less than 1.0

Effective radiation range: 180-275 nm (shortwave)

Power consumption from the power supply network: no more than 300 VA

The time for establishing the operating mode of the product: does not exceed 1 minute from the moment the illuminator lamp lights up

Operating mode: continuous work for 16 hours a day in a cyclic mode - up to 30 minutes work - 15 minutes break

Overall dimensions of the OUFK-01 irradiator no more than 275x145x140 mm

Kit weight: no more than 1 kg

Power supply from 220 V, frequency 50 Hz

Lamp type DKBU-7 (7 W).

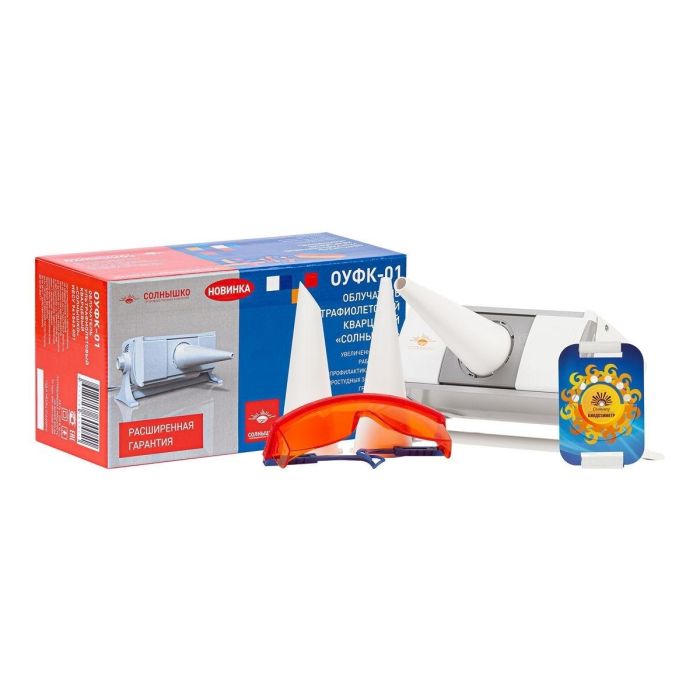

Equipment

Ultraviolet quartz irradiator OUFk-01 "Solnyshko" - 1 pc .

UV protective goggles - 1 piece

Tube with an exit hole O 5 mm - 1 pc .

Tube with outlet Ø 15 mm - 1 pc .

A tube with an outlet at an angle of 60 ° - 1 pc .

Biodosimeter - 1 pc .

Manual

Instructions for use.

Specifications

Manufacturer country

Russia

Brand name

Sun

A type

quartz lamp

Package weight, g

1500

"
