OUF-06 Sun Irradiator Ultraviolet

Due to its compactness, the model is convenient for travel, as well as in a car, as it is powered by a cigarette lighter!

The portable ultraviolet irradiator OUF-06 Solnyshko" is a therapeutic and bactericidal device for use at home.

The portable irradiator is intended for local exposure to certain areas of the human body and internal cavities in diseases in otolaryngology, surgery.

Application of the OUF-06 "Solnyshko" irradiator

Irradiation is subdivided into intracavitary and local (local):

Intracavitary irradiation - irradiation of the mucous membranes of the nose, oral cavity, external auditory canal for inflammatory, infectious-allergic, infectious diseases.

Local (local) radiation - radiation for skin diseases, as well as for traumatic (suppurative, infectious - inflammatory) lesions of the skin.

Indications

flu, acute respiratory infections

acute inflammation of the maxillary sinuses

vasomotor rhinitis, acute chronic rhinitis

acute tubo-otitis (pulse mode)

chronic tonsillitis

acute periodontitis, chronic periodontal disease (pulse mode)

clean purulent wounds, trophic ulcers, bedsores, inflammatory

infiltrates, boils, carbuncles

acute and chronic erysipelas

acne vulgaris.

General UFOs are prescribed, taking into account individual characteristics and sensitivity of the skin to ultraviolet radiation.

Contraindications

malignant neoplasms in any period of the course of the disease, including after radical operations,

systemic connective tissue diseases,

active form of pulmonary tuberculosis,

hyperthyroidism,

feverish conditions

bleeding tendency

circulatory failure II and III degrees,

arterial hypertension III degree,

pronounced atherosclerosis,

myocardial infarction (first 2-3 weeks),

acute disturbance of cerebral circulation,

diseases of the kidneys and liver with insufficient function,

peptic ulcer during exacerbation,

chronic hepatitis, pancreatitis with symptoms of process activity,

cachexia,

hypersensitivity to UV rays, photodematosis,

systemic blood diseases.

Note:

Due to the fact that UV irradiation is of a local nature, some contraindications will be of a relative nature and the question of using local UV irradiation can be decided by the attending physician individually.

Irradiation of OUF-06 "Solnyshko" in the effective spectral range is:

Irradiation type Nominal value, W / m2

With general irradiation at a distance of 0.5 m from the irradiated surface not less than 0.3

With local irradiation at the tube cut O 5mm not less than 3.0

With local irradiation at the tube cut O 15mm not less than 5.0

With local irradiation at an oblique cut of 60 °, not less than 5.2

Effective radiation range: 180-275 nm (shortwave)

Power consumption from the power supply: no more than 20 VA

The time for establishing the operating mode of the product does not exceed 1 minute from the moment the UV lamp of the illuminator lights up

Operating mode: continuous work for 8 hours a day in a cyclic mode - 15 minutes work - 15 minutes break (without tubes)

Automatic shutdown of the irradiator is provided after 20 minutes

Dimensions: no more than 195x85x45 mm

Kit weight: no more: 1 kg

Supply voltage from AC 220 V, 50 Hz or 12V DC.

Current consumption from an external DC source no more than 1.5 A

Lamp type DKBU-5 (5 W).

The efficiency of the device is increased by the reflector.

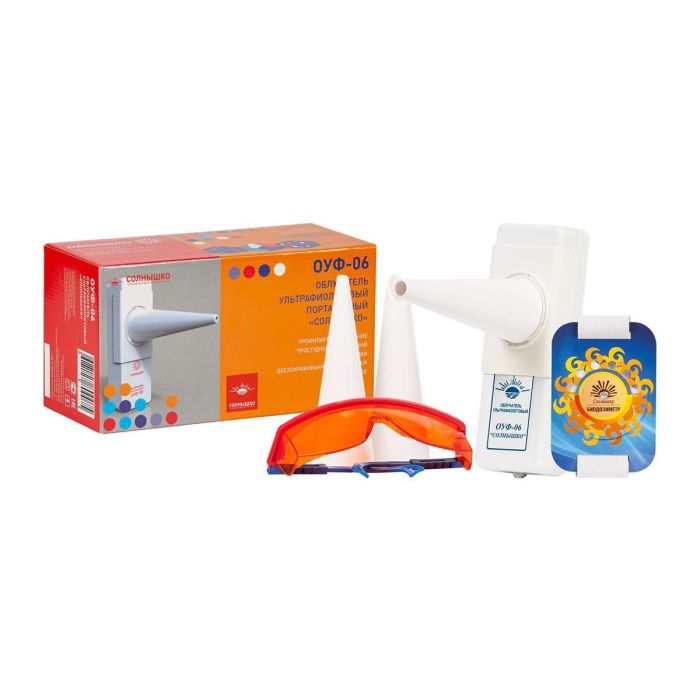

Equipment

Ultraviolet irradiator OUF-06 "Solnyshko" - 1 pc .

The set includes a power adapter for connecting the device to a 220 V power supply and for connecting to a 12V car cigarette lighter socket - 1 pc .

UV protective goggles - 1 piece

Tube with an exit hole O 5 mm - 1 pc .

Tube with outlet Ø 15 mm - 1 pc .

A tube with an outlet at an angle of 60 ° - 1 pc .

Biodosimeter - 1 pc .

Branded carrying bag - 1 piece

Manual

Instructions for use.

Specifications

Manufacturer country

Russia

A type

quartz lamp

Brand name

Sun

Package weight, g

1000

"
