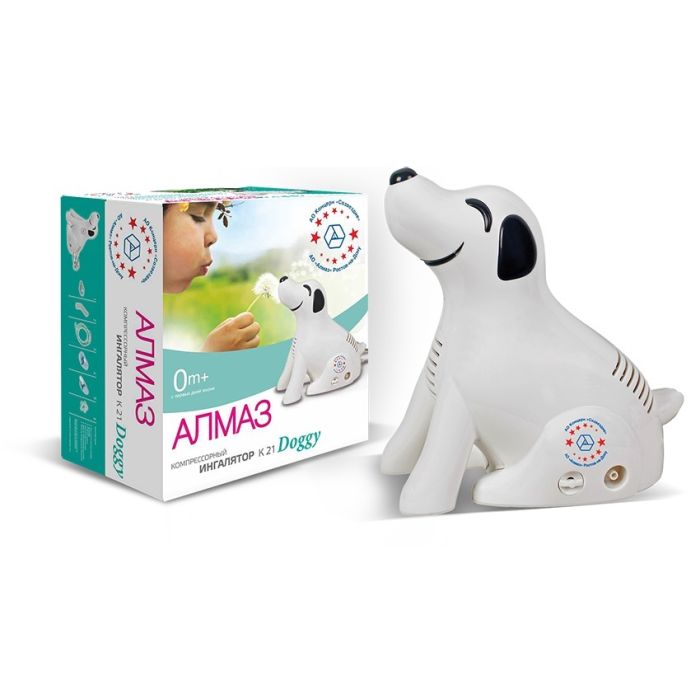

Compressor inhaler 'K 21' - Doggy
Inhaler type
Compressor (jet)
Manufacturer country
Russia
Dimensions, mm
230 x 220 x 110
Item weight, g
1700
Expiration date in days
365
Compressor K21 Doggy" is designed for inhalation procedures.
It is used for the prevention and treatment of respiratory diseases: bronchial asthma, ENT diseases, influenza, SARS, and many others.
Power supply: 220V, 50Hz.
The transformation of a liquid drug into a fine aerosol occurs under the action of a stream of air forced by a small-sized compressor.
The liquid medicine is converted into an aerosol with particle size optimal for deposition in all parts of the respiratory tract (2.5 - 9 microns).
This effect is achieved through the use of a special design spray chamber.
The air supplied to the spray chamber is cleaned with a special replaceable filter.
The body of the device is made of hygienic materials in the shape of a funny dog.
Features and benefits of the inhaler:
This model is aimed at young children.
They perceive it as a toy, and the inhalation procedure does not seem tiresome to them.
An indicator light built into the power button enhances the fun toy's effect.
The device is highly reliable and easy to use.
Although the external design of the device focuses on younger patients, it is technically a fully functional inhaler designed for use by people of all ages.
Functional and high quality
Specifications:
Modern ergonomic design
Aerosol particle size - 85%, no more than 4 microns
Spraying intensity - 0.3 ml / min
Simple one-button control
Power consumption from the network - 135 W
A wide range of nebulized drugs
Noise level - 55dB
Compressor pressure range - 30-36 Psi
Power supply from an alternating current with a frequency of 220 V, 50 Hz
Electronic unit weight - 1700 g
Overall dimensions of the electronic unit - 290x180x105 mm
The volume of the medicine container is 6 ml.
Equipment
Electronic unit - 1 piece
Flexible hose - 1 piece
Spray chamber - 1 piece
Children's mask - 1 piece
Adult mask - 1 piece
Fitting - 1 piece
Operation manual - 1 piece
Air filter (spare) - 5 pcs.
Specifications
Inhaler type
Compressor (jet)
Manufacturer country
Russia
Dimensions, mm
230 x 220 x 110
Item weight, g
1700
Expiration date in days
365
Colour
White
A type
Inhaler
Brand name
Diamond
Package weight, g
2150
"
