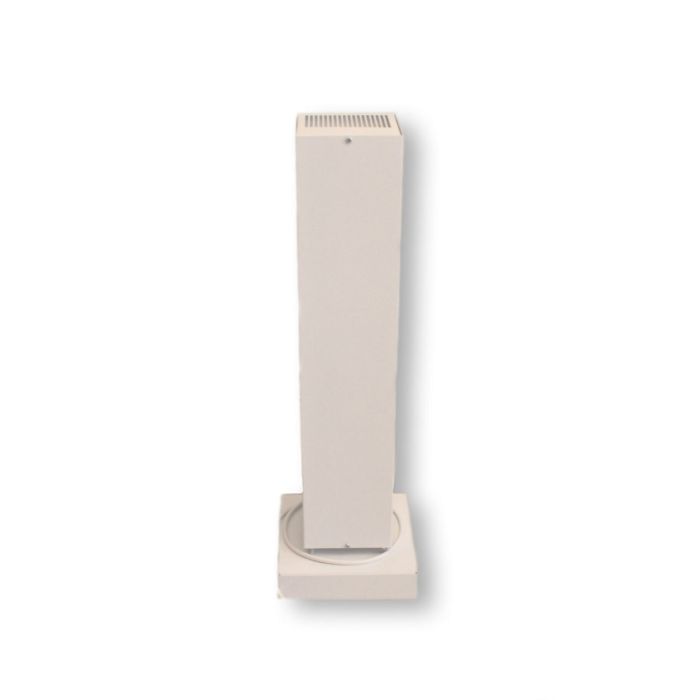

Bactericidal recirculator PHOTO * 15 30W up to 50m2

Recirculator - irradiator of the OBRN01 PHOTON series are designed for air disinfection in administrative, public, industrial premises and other places of mass stay of people.

Technical

Specifications:

The irradiator is designed to work with two T8 bactericidal lamps with a power of 15 W of the G13 base in AC networks with a rated voltage of 220 V, a frequency of 50 Hz.

Flow rate - 50 m3 / hour.

about 50 sq.

meters with a ceiling height of 2.5 meters

Electric shock protection class - I.

The irradiator consists of a housing, a base, side covers, a fan, which form an irradiation chamber, in which an electrical circuit is located.

Air blowing through the internal volume of the irradiator is provided by a fan through ventilation holes located in the housing.

The lamp is shielded from UV radiation entering the human eye.

The irradiator is designed to decontaminate indoor air in the PRESENCE of PEOPLE.

The irradiator is placed in the room in such a way that the intake and release of air is carried out without hindrance and coincides with the directions of the main convection flows (near heating devices, window and door openings)

Equipment

Package Included:

Recirculator-irradiator - 1 piece,

Packing - 1 piece,

Lamp - 2 pcs,

Equipment passport - 1 piece,

Equipment certificate - 1 piece,

Lamp certificate - 1 pc.

Specifications

Dimensions, mm

670x200x200

Item weight, g

3000

A type

Recirculator

Brand name

ICE LIGHT

Colour

White

Package weight, g

3200
