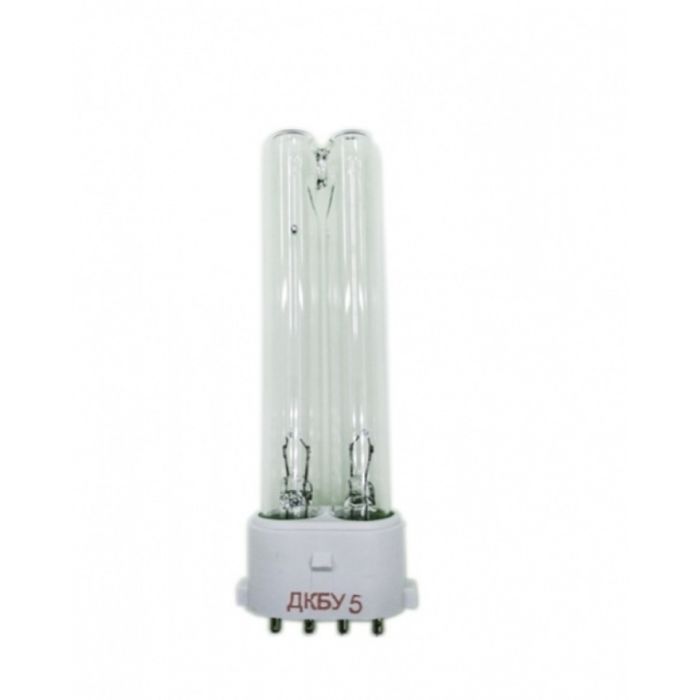

Bactericidal lamp DKBU-5

The bactericidal lamp DKBU-5 is used in the OUFD-01 irradiator.

The lamp has a low power, therefore it is used to treat ENT diseases in children.

On the recommendation of a doctor, this lamp can be used to irradiate children under 3 years of age.

The lamp is a low pressure mercury discharge lamp with a tubular glass bulb.

The lamp emits short-wave ultraviolet rays with a maximum at the wavelength, which have a bactericidal effect, does not form ozone.

UV lamps are extremely fragile and care should be taken when replacing them.

After the inoperative lamp is removed from the device, and a new germicidal lamp is installed in the illuminator, it is necessary to gently wipe it with a dry cloth to remove foreign contamination.

If there is little dirt on the lamp, it quickly breaks down.

Technical

Specifications:

Base type: 2G7 (4 pins)

Flask diameter, mm: 13 (2 flasks)

Length mm: 92

Glass type: UV

Glow body: (2 horizontal)

Power, W: 5

Lamp voltage, V: 34 ± 4

Radiant flux, W: 1.0 (wavelength? Max = 253.7 nm)

Continue

combustion, h: 6000

Flask shape: round

Glass color: transparent

Specifications

A type

quartz lamp

Package weight, g

200
