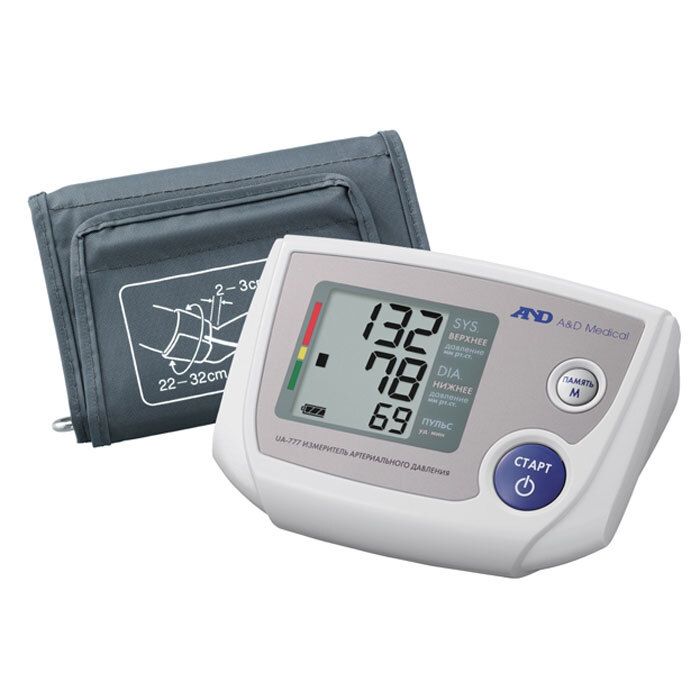

AND UA-777 AC L automatic blood pressure monitor with a large cuff + Adapter

Distinctive features:

Intellitronics smart control system, thanks to which automatic AND arm pressure monitors independently determine the required level of cuff inflation in accordance with the user's pressure characteristics.

This makes the measurement process fast, accurate and painless.

Memory function for 90 measurements and calculation of the average pressure value to track the dynamics of changes in pressure level.

Arrhythmia indicator (function to detect irregular heartbeat) to prevent incorrect readings during measurement.

Information in the form of a special character is displayed.

Re-measurement is required.

The WHO (World Health Organization) color scale is a graphical indicator that will help you instantly assess the user's blood pressure in exact accordance with the classification of the World Health Organization.

If you get into the red" sector, you must urgently consult a doctor.

Simple and convenient control of the tonometer with one button - START

all texts on the cuff and the device are written in Russian, in large and distinct letters.

The device is supplied with a case made of dense material for easy transportation.

Comfortable and painless AND UA-Cufbox-LA cuff, for arms with a shoulder circumference of 32 - 45 cm, which fits snugly around the arm and ensures accurate measurement.

The main unit of the AND UA-777L blood pressure monitor in the case is guaranteed for 10 years.

The AND UA-777L tonometer is powered by 4 AA batteries or a power adapter.

Duration of work from one charge from a set of batteries is about 120 hours.

The set includes an AND TB-233C AC adapter.

Technical

Specifications:

Device Name: Digital Blood Pressure and Heart Rate Meter

Model: AND UA-777L

Measurement Technology: Intellitronics

Measurement method: oscillometric

Screen: liquid crystal

Pressure measurement range: 20 to 280 mm Hg

Pulse rate measurement range: from 40 to 200 bpm.

Limiting error of pressure measurement: ± 3 mm Hg

Limit error in measuring heart rate: less than 5% of readings

Cuff included: Large AND Cufbox-LA cuff for arms with a shoulder circumference of 32 - 45 cm.

Arrhythmia indicator: Yes

Movement indicator: Yes

Cuff Position Indicator: Yes

Cuff development rate indicator: Yes

High pressure indicator: Yes

Average calculation: Yes

Electronic unit weight (without batteries): 300 gr.

Dimensions of the electronic unit: -

Memory: Yes, 90 measurements

Air injection: automatic

Air release: automatic

Operating conditions: air temperature from +10? C to +40? C at a relative humidity of no more than 85%

Storage conditions: air temperature from -10? C to +60? C at relative humidity not more than 95%

Power supply: 4 AA cells (penlight batteries) or from the mains adapter

Adapter included: Yes, AND TB-233C

Electronic unit service life: 10 years

Cuff life: 1 year

Warranty: 10 years, for individual components: adapter and cuff - 1 year

Equipment

- Main unit in the AND UA-777L case - Large AND Cufbox-LA cuff for arm circumference 32 - 45 cm - Connecting tube - Case for storing the device - Operating manual (in Russian) - Battery set type AA - 4 pcs ...

- AC adapter AND TB-233C - Warranty card

Specifications

Arrhythmia indicator

Yes

Tonometer type

Auto

Measuring range

from 20 to 280 mm Hg

Tonometer memory

Saving the results of previous measurements

Cuff position

On the shoulder

Type of food

4 AA

,

From 220V network

Accuracy

± 3 mmHg

Large cuff

Yes

Expiration date in days

3650

Brand name

AND

A type

Tonometer

Package weight, g

775

"
