Air recirculator for home and office with built-in germicidal LED-lamp with UV-A radiation.

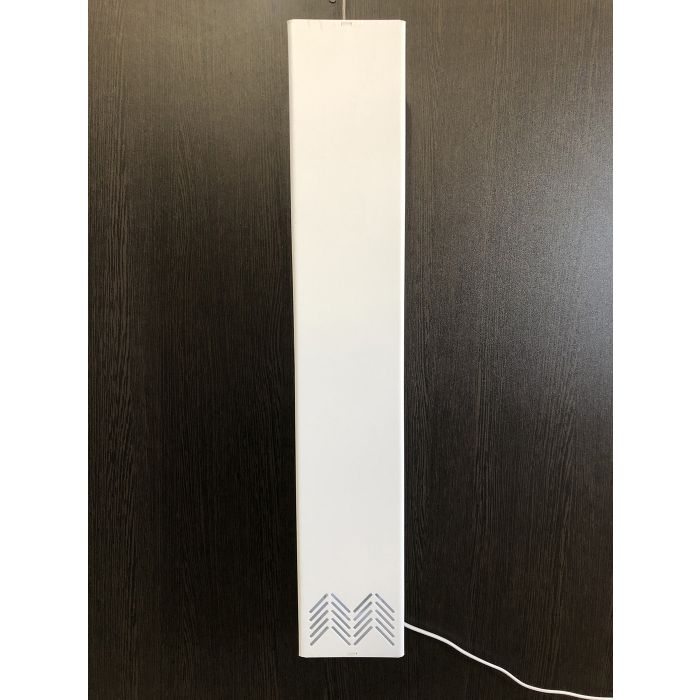

Recirculator UV-100

The bactericidal UV recirculator is intended for air decontamination of residential, office premises, medical and prophylactic institutions, hairdressing salons, cosmetic, manicure and pedicure rooms, sports, children's, educational, industrial and other premises in the presence of people.

The Recirculator is switched on by double pressing the switch.

The recommended volume of the treated premises is up to 100 cubic meters.

Recirculators are used in rooms for air disinfection in order to reduce the level of bacterial contamination and create conditions to prevent the spread of pathogens of infectious diseases.

Disinfection takes place in the process of forced air recirculation with the help of a fan through the irradiator housing, inside which ultraviolet lamps with a wavelength of 380-430 nm are placed, which have a wide spectrum of action on microorganisms, including bacteria, viruses, fungi and spores.

The absence of the accompanying formation of ozone and direct ultraviolet rays makes UV-100 and UV-200 safe for use in the presence of people, animals and plants.

Recirculators UV-100 and UV-200 are used in rooms with an increased risk of spreading infectious agents: in shops, offices, hairdressers, other crowded places, with the exception of medical institutions of the first and second cleanliness classes, as well as in household premises in the presence and absence of of people.

Technical

Specifications:

Power consumption - UV-100 - 30 W (UV-200) - 45 W.

The source of UV radiation is a 14 W bactericidal ultraviolet lamp.

For the manufacture of lamps, a special compound of plastic and glass is used, which has a high transmittance of bactericidal ultraviolet rays and, at the same time, absorbs radiation below 200 nm.

Due to this, an extremely low ozone formation is recorded (within the maximum permissible concentration).

the average service life of lamps with proper use and care is not less than 30,000 hours.

after 30,000 operating hours, the lamp is replaced.

Flow rate not less than:

100 cubic meters

(UV-100)

200 cubic meters

(UV-200)

The service life of the Recirculator is at least 12 months.

The time for the Recirculator to reach the operating mode is no more than 1 minute.

Operating conditions of the Recirculator UV-100, UV-200: temperature from -10 to + 35C, relative humidity 80% at a temperature of 25C, pressure - 630-800 mm Hg.

Art.

Equipment

The scope of delivery of the UV Recirculator includes:

1. Recirculator UV-bactericidal lamp for air disinfection in the room - 1 pc.

2. Packaging containers - 1 pc.

3. Cord - 1pc.

4. Product passport - 1 pc.

5. Warranty card - 1pc.

Specifications

Manufacturer country

Russia

Dimensions, mm

650 * 120 * 110

Item weight, g

1150

Brand name

WoodOwl

A type

Recirculator

Colour

White

Package weight, g

1800
